GENERAL INTRODUCTION:

in order to meet the increasing requirement of processors in the copper wire field.
this firm has developped and manufactured more advanced copper wire drawing machines,

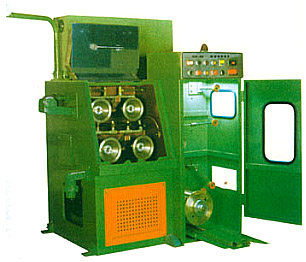

the Moedl S-20D.

SPECIAL FEATURES:

1. 5HP 6P motor for the machine body.
2. Ceramic Stepped Wheel, 9 steps
3. Ceramic Take-off Wheel, single step.
4. Electric Clutch, 6KW
5. Electric Brake, 12KW
6. Japanese KOYO Programable computer.
7. Control Box, one each for front & rear.
8. Wire Rowing Machine, precision belt type
9. 1 / 60HP Tension Motor for the pushing-roller.
10. Stainless steel Safty Cover, dual layer.
11. Adjustable Dis Shoe.
12. Spooler of expansion type.
13. Electric Parts of Shinlin products.
14. Belt of German M-1000

Inlet wire dia.
Finished wire dia.
Number for dies
Speed decrease rate
Spooling capacity
