GENERAL INTRODUCTION:

in order to meet the increasing requirement of processors in the copper wire field.
this firm has developped and manufactured more advanced copper wire drawing machines,

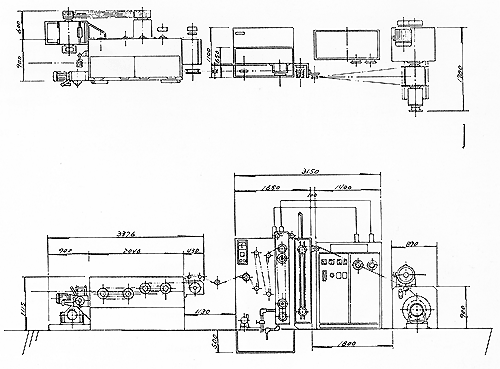

the Model WG-17 and WG-17

COPPER WIRE DRAWING CONTINUOUS RESISTANCE ANNEALER.

These two models are designed through years of our experience and modern technology so as to ensure good performence and high efficiency.

SPECIAL FEATURES:

1. 50HP, Motor for main body, low pressure wire winding type.
2. 1HP pump for oil of wire drawing, 4P
3. Stepped wheel of cast steel and tungsten steel,
   4-stop type
4. Take-off wheel made of tungsten single step
5. 2HP Motor for the rolling machine
6. Spooling Machine
7. Electric brake, 60kgs/M
8. Movable controller is to be used on the
   wire sotup machine
9. Voltage regulator, 20A,60V
10. Torgue motor, 2.5kw
11. Use Japanese NSK bearing
12. Design for stopping the machine when wire breaks
13. The machine stops automatical when spool is fully loaded
